The OTT Tube Diffuser is a state-of-the-art aeration solution designed to enhance the efficiency and effectiveness of wastewater treatment processes. This advanced system has been developed to provide optimal oxygen transfer and ensure the aerobic conditions necessary for the biological treatment of wastewater. With its innovative design and robust construction, the OTT Tube Diffuser is suitable for a wide range of applications, including municipal and industrial wastewater treatment plants.
Our product lineup includes three distinct types: Standard 2 Tube Diffusers, Magnum Tube Diffusers, and One X Tube Diffusers. We also provide custom lengths, personalized colors, logos, and other specific printing options tailored precisely to your specifications.
The principle of operation of a tube diffuser in aeration systems is based on the distribution of air through a perforated tube to create fine bubbles, which enhance oxygen transfer efficiency in the water.
Key Steps:
Air Supply
Compressed air is supplied to the diffuser, typically involving blowers or compressors.
Air Distribution
The air enters the tube diffuser, which has numerous small holes or slits.
Bubble Formation
Air passes through the perforations and is released into the water as fine bubbles.
Bubble Rise
Fine bubbles rise slowly to the surface, creating a large surface area for oxygen transfer from air to water.
Oxygen Transfer
As bubbles rise, oxygen is transferred from the air bubbles to the surrounding water, increasing dissolved oxygen (DO) levels for aerobic wastewater treatment.
Mixing
Rising bubbles create vertical mixing in the water, ensuring even distribution of oxygen and preventing stratification.
STANDARD 2® Diffusers
- Three-Dimensional Screening Panels: The Aqua Guard® screen utilizes a unique filter element system designed to automatically remove a wide range of solids found in conventional municipal and industrial wastewater channels. The elements, mounted on a series of parallel shafts, form an endless moving belt that collects, conveys and discharges solids greater in size than the nominal element spacing.
- Continuous Self-Cleaning System: This screen features an integrated self-cleaning mechanism that includes brushes and high-pressure spray nozzles. The brushes are strategically placed to scrub the screen panels continuously, while the spray nozzles ensure that any adhered particles are washed away.
MAGNUM® Tube Diffusers
- High-Efficiency Ultrafine Screening Panels: The AquaGuard® UltraClean is designed with advanced ultrafine screening panels that provide exceptional contaminant removal. These panels are engineered to capture the smallest particles and fine debris, making it ideal for applications requiring high-efficiency filtration.
- Advanced Self-Cleaning System: The UltraClean model incorporates a sophisticated self-cleaning mechanism with enhanced brushes and high-pressure nozzles. The brushes are designed to handle fine particles more effectively, and the nozzles provide powerful cleaning action to keep the panels free from clogging.
OneX® Tube Diffusers
- Perforated Plate Technology: The AquaGuard® PF features perforated plate screening technology. Have precisely sized and spaced perforations that provide a higher open area compared to mesh screens, allowing for more efficient filtration and higher flow rates. Designed for higher capture rates, making the PF model suitable for high-volume applications where robust screening is required.
- Efficient Self-Cleaning System: The cleaning system, featuring both brushes and high-pressure spray nozzles, is designed to maintain the perforated plates’ integrity by removing debris. This ensures clear plates, consistent performance, and reduces the need for frequent manual cleaning.
Features and Benefits

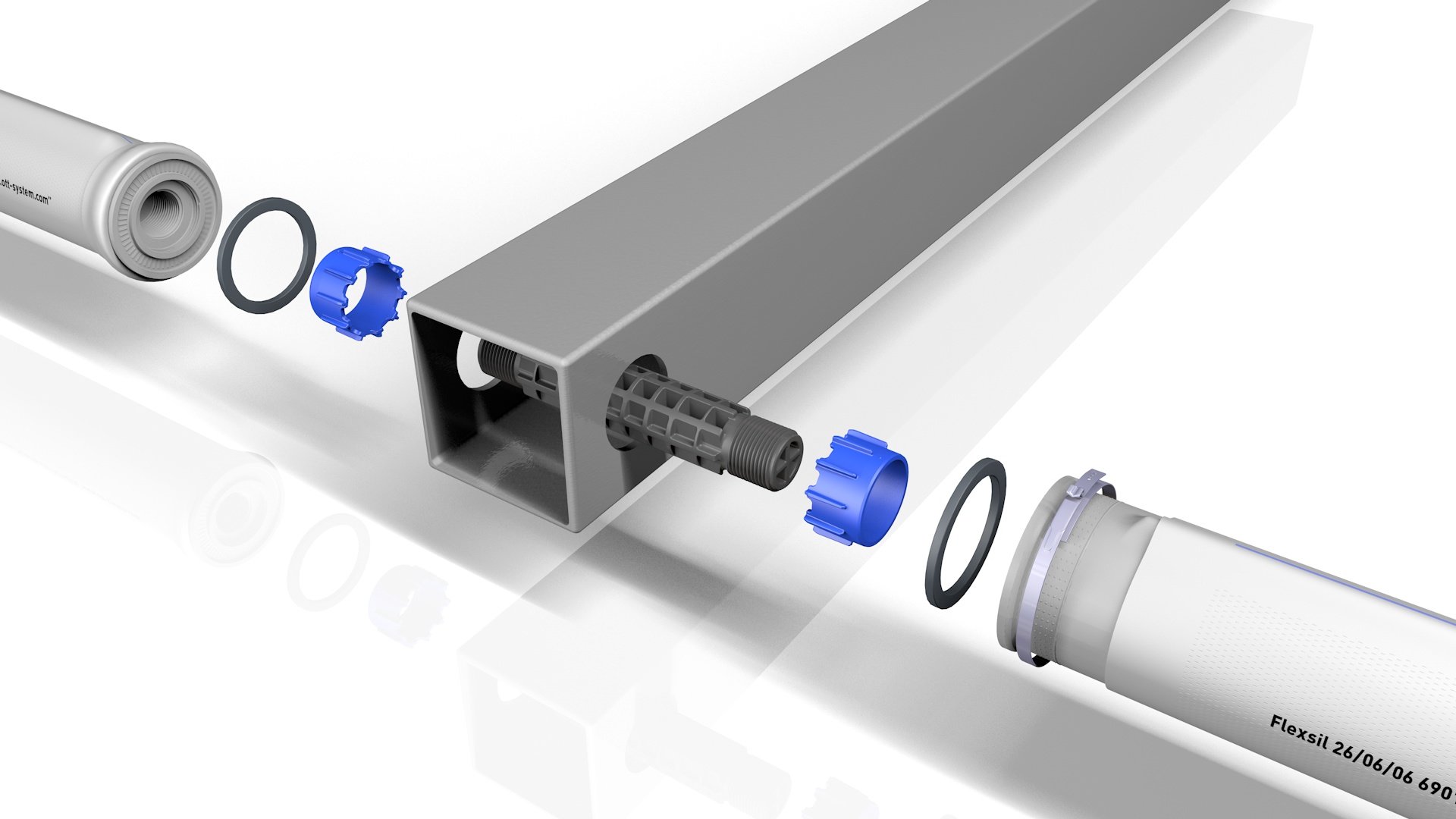

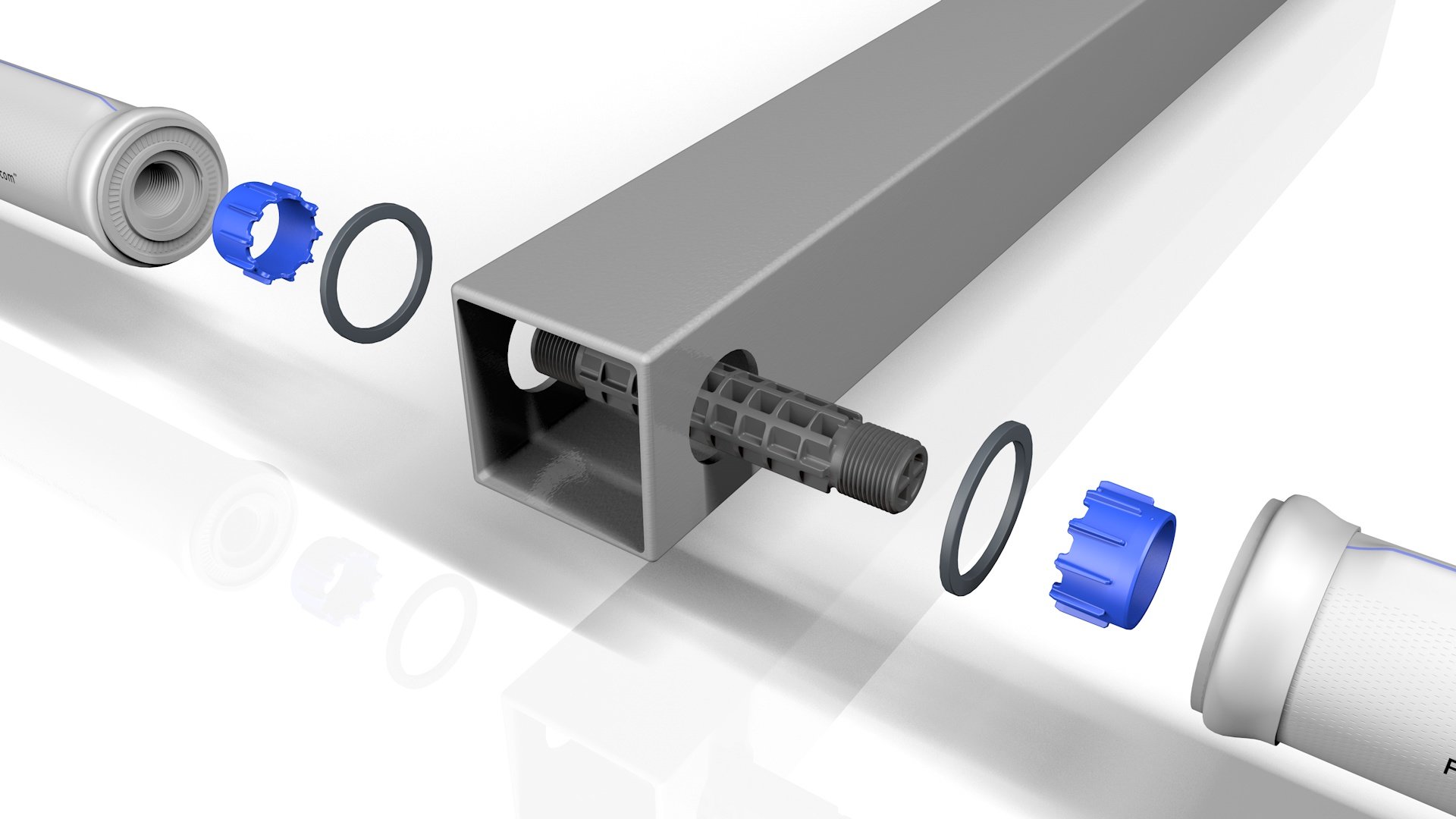

Easy retrofit installation
Quick setup on rectangular or round headers
Patented Engineering with Integrated Air Channel
Uniform air flow distribution for efficient fine-bubble aeration
Low Maintenance
General design features clog prevention
Patented CLIPIN® Lock
The CLIPIN® locking system allows for easy and secure mounting of the diffusers. This feature simplifies installation and maintenance, ensuring that the system can be easily and reliably set up and maintained.
Efficient Perforation Patterns
Customizable perforation patterns are available to meet specific application requirements. These patterns ensure optimal bubble distribution and uniform air release, enhancing the overall efficiency of the aeration process.
Enhanced Process Control
The uniform distribution of air provided by the OTT Tube Diffuser enhances process control and efficiency. This leads to improved treatment performance and consistency, ensuring that the treatment plant can meet regulatory standards and produce high-quality effluent.
High-Quality Materials
The diffuser body is made from eco-friendly, recyclable polypropylene (PP) or other high-grade materials like stainless steel. This ensures durability and longevity, allowing the system to withstand harsh environmental conditions and prolonged use.
Available in Various Lengths
Our diffusers are available in standard lengths and with custom lengths available upon request. This range of sizes allows the system to be tailored to specific needs, ensuring optimal performance for different applications.
